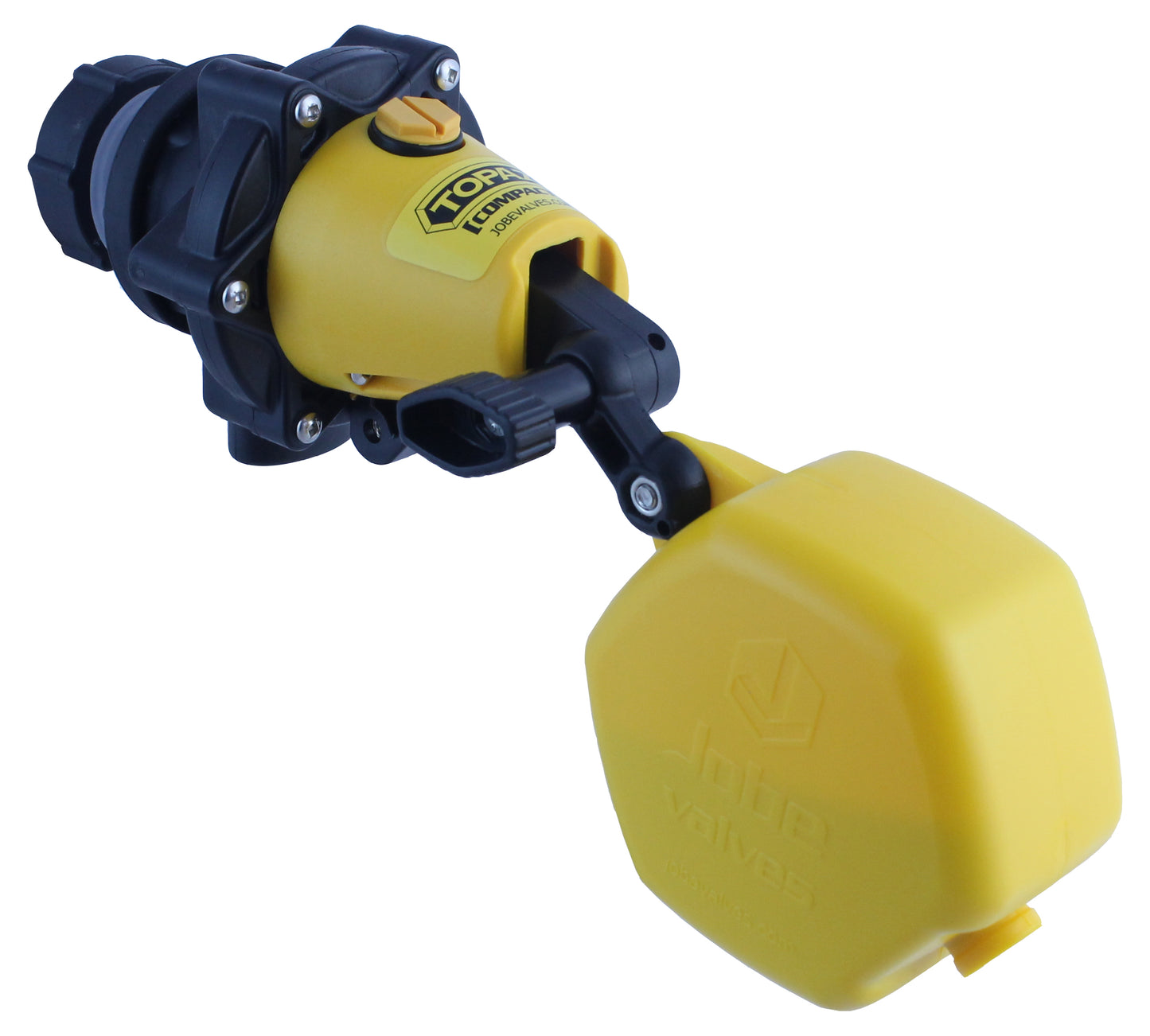

Jobe Topaz 3/4" Inlet Compact DLT Float Valve TPVC0075D Short Tail
Jobe Topaz 3/4" Inlet Compact DLT Float Valve TPVC0075D Short Tail
Part Number TPVC0075D
Short Tail
Couldn't load pickup availability
The Jobe Topaz 3/4" Compact Float Valve (TPVC0075D) is a high-flow, float-operated valve designed for automatic filling of livestock waterers, tanks, and troughs. Built with a compact body and short tail inlet, it’s ideal for installations where space is limited.
This valve uses a pilot-operated diaphragm system to deliver consistent water levels with a reliable, positive shut-off. The 3/4" NPT short tail design allows for simple mounting through tank walls, while the above-water configuration makes adjustments and maintenance quick and easy.
Designed for durability and performance, the TPVC0075D is well-suited for pump-fed or pressure systems where fast refill and dependable operation are critical.
- 3/4" NPT short tail inlet for compact installations
- High flow rate (up to ~80–90 GPM depending on setup)
- Pilot-operated diaphragm for reliable shut-off
- Compact design fits tight spaces
- Above-water mounting for easy access and servicing
- Adjustable float arm (tool-free adjustment)
- Built-in lock-off lever for manual shut-off
- Slow closing design helps reduce water hammer
- Corrosion-resistant construction for long service life
- Works well in low and high pressure systems (approx. 5–100+ PSI)
