Hoskins Waterer Parts

There is not much on a Hoskins waterer that cannot be put right with a wrench and a brass part. The valve lives in its own insulated compartment behind a service door, and everything that wears is a stock item.

The parts list

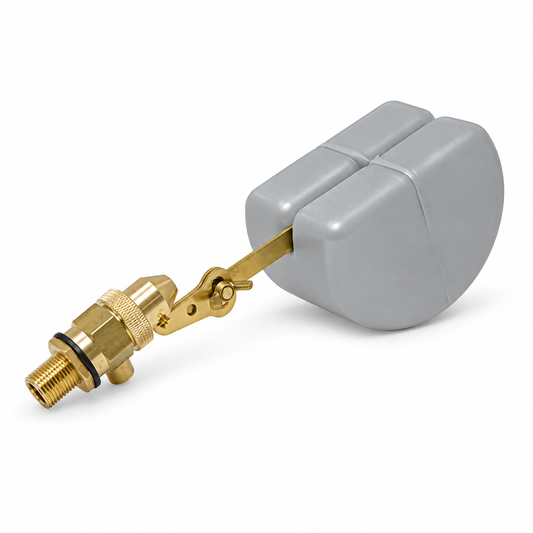

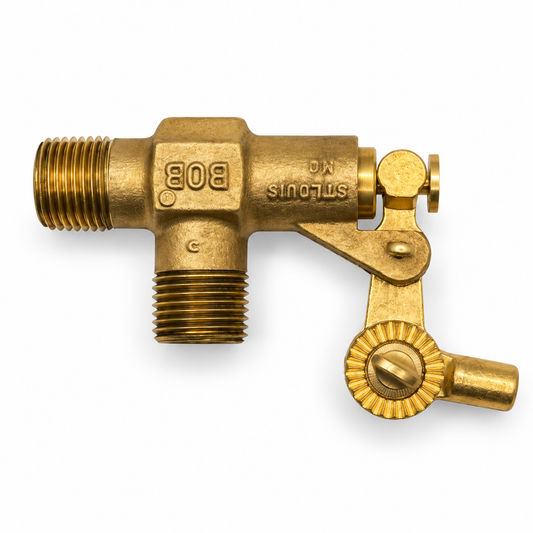

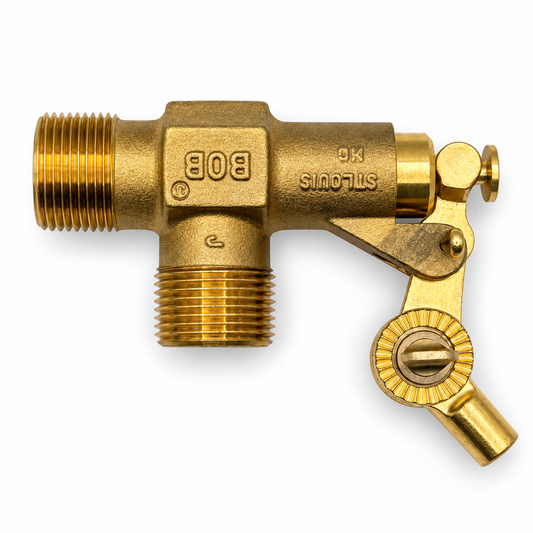

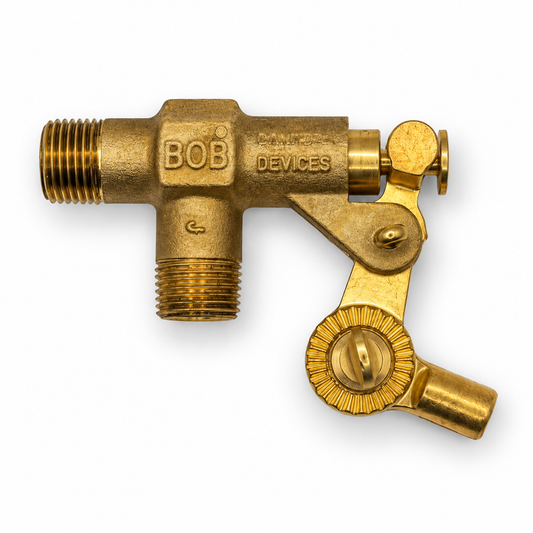

  • Bob valve — 3/8, 1/2, 3/4 and 1 in. Fills the tank. The size is set by your model.

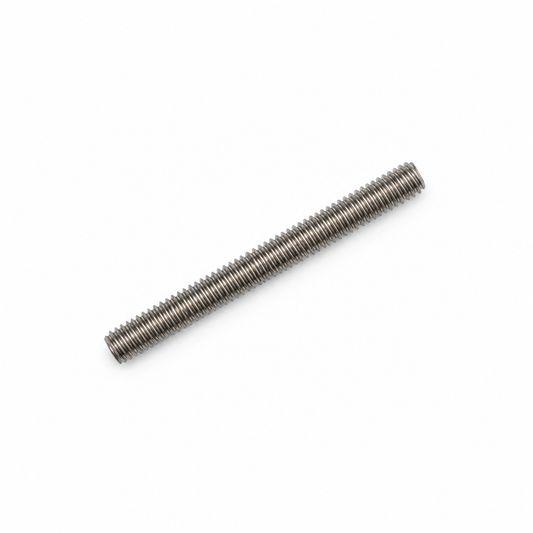

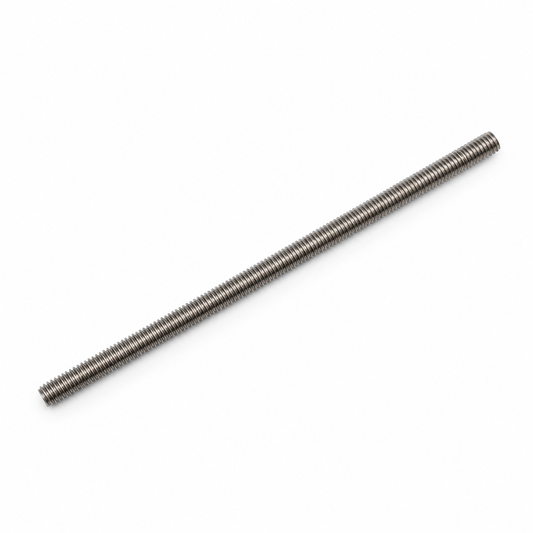

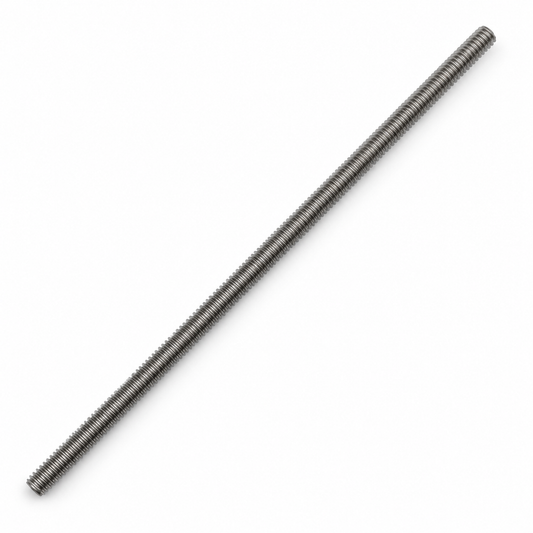

  • Float rod — 4, 6 and 8 in. Joins the valve to the float. The length sets the water level.
  • RM 153 valve and float assembly — the complete valve used on the horse and hog units in place of a rod.
  • RM 153 hose hookup — for filling and flushing from a hose.

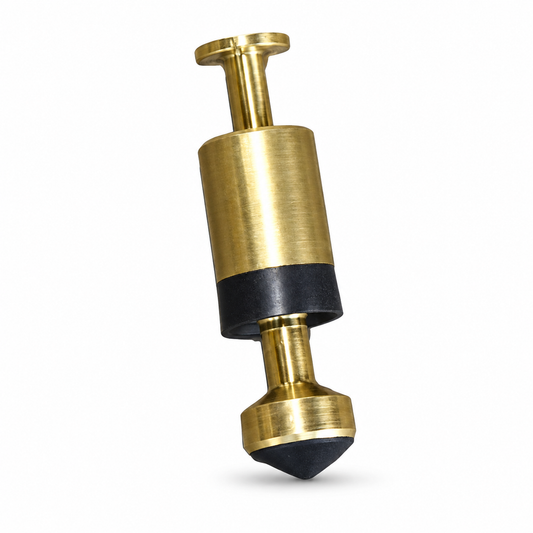

  • Plunger — four sizes, 3/8 through 1 in. Sets how fast water passes.

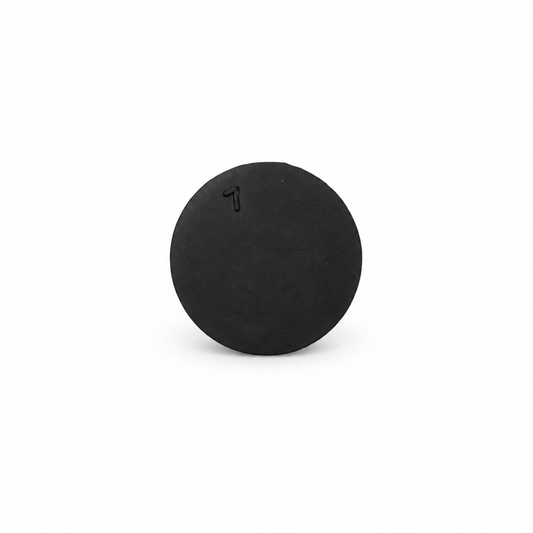

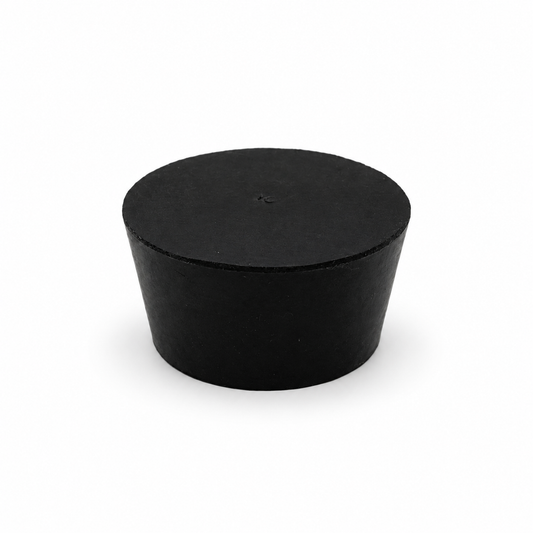

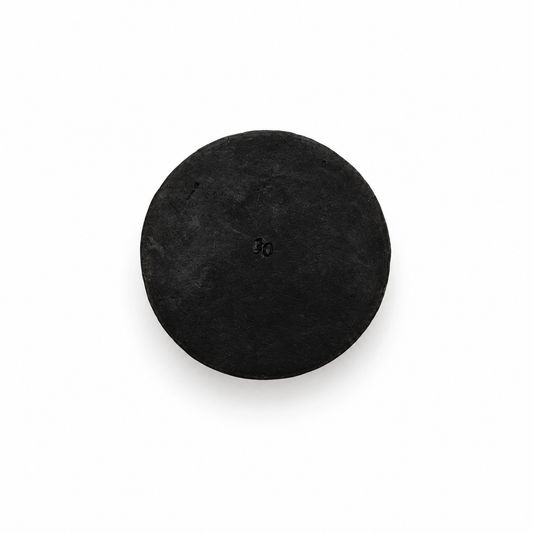

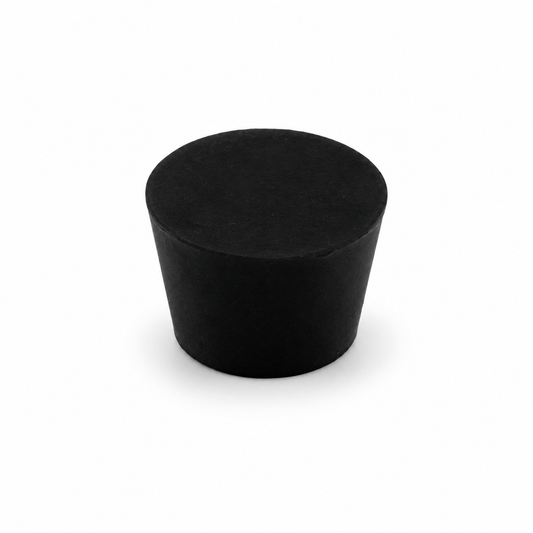

  • Rubber stopper — 1 1/2 in. and 2 in. Plugs the drain.
  • Valve cover — the insulated cover over the valve compartment.
  • Valve hookup — the fitting between your water line and the unit.

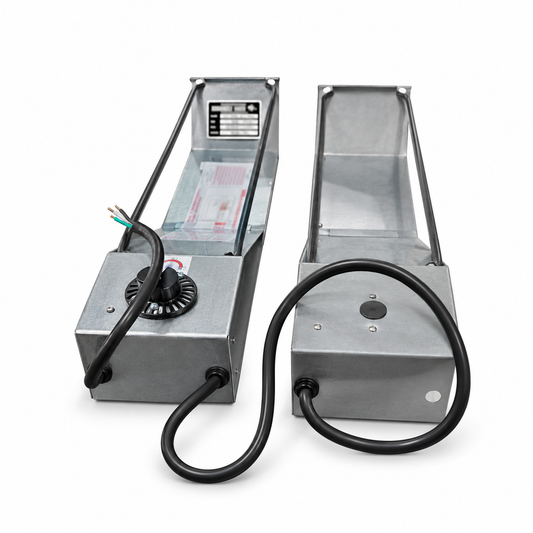

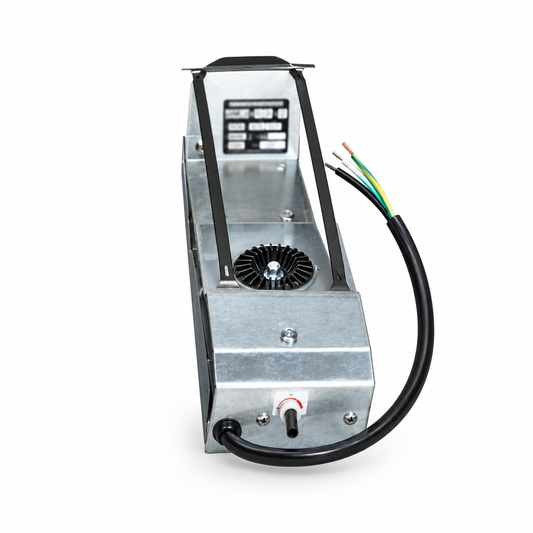

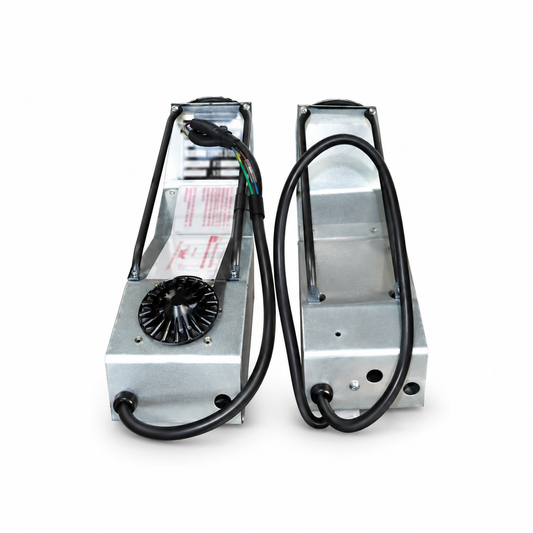

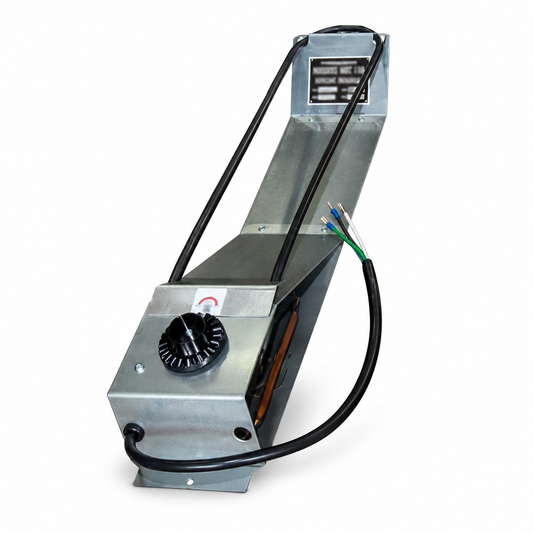

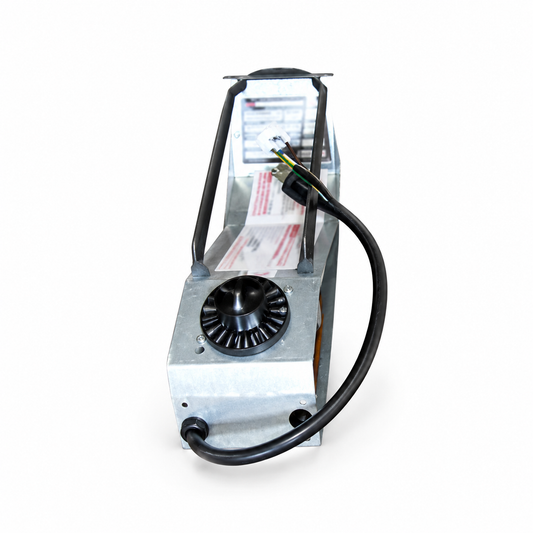

  • Heaters — A, AA, B and C, used singly or doubled up, covering 250 W through 2,100 W.

Two quick rules

Stopper size follows the species: 2 in. on cattle and sheep units, 1 1/2 in. on horse and hog units, both on the CH combination units. Valve size follows the model, so read the plate on the service door before you order.

Tell us what you need through the contact form and we will confirm the part and the price.
