Franklin Three Quarter Valve PKG BL119 & BL117 Round Float Long Arm

Franklin Three Quarter Valve PKG BL119 & BL117 Round Float Long Arm

Part Number 41610

$53.00 USD
$53.00 USD
Sale Sold out
Shipping calculated at checkout.

Checking your valve size, measure the orifice and not the thread

All Franklin valves thread in the same way, a standard 3/4 inch hook up, so the fitting will not tell you which valve you are holding. The 1/2 inch and 3/4 inch names describe the orifice, the opening the water flows through. Look down through the threads at that opening. On a 1/2 inch valve it is roughly the width of a pencil tip. On a 3/4 inch valve it is closer to the width of a pencil eraser.

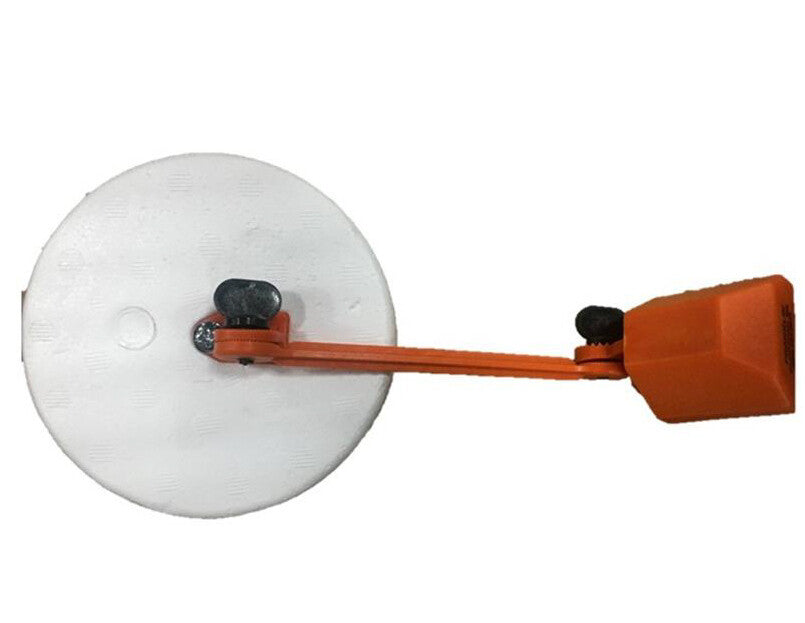

The 3/4" Valve Package include the BL119 valve and BL117 Float with Long-arm. The round float is styrofoam and the package includes two wing-nuts to adjust water level in your Franklin Waterer.

Ensure optimal water flow with the Franklin Three-Quarter Valve Package featuring the BL119 valve and BL117 round float with a long arm. This assembly is designed for durability and precision, making it perfect for regulating water levels in large-capacity Franklin waterers.

FLOW RATES - GPM at listed pressure
2 PSI 5 PSI 10 PSI 40 PSI
Franklin 3/4" valve 3.5 GPM 6 GPM 7.5 GPM 8.5 GPM

This set is used in the following Franklin models (discontinued and current)

  • AP-8
  • E-20
  • F-5
  • F-8
  • F-10
  • F-48
  • F-52
  • PC-10
