Jug Insulated Earth Tube - Variety of Lengths
Jug Insulated Earth Tube - Variety of Lengths
Part Number
Couldn't load pickup availability
5.0 / 5.0
(4) 4 total reviews

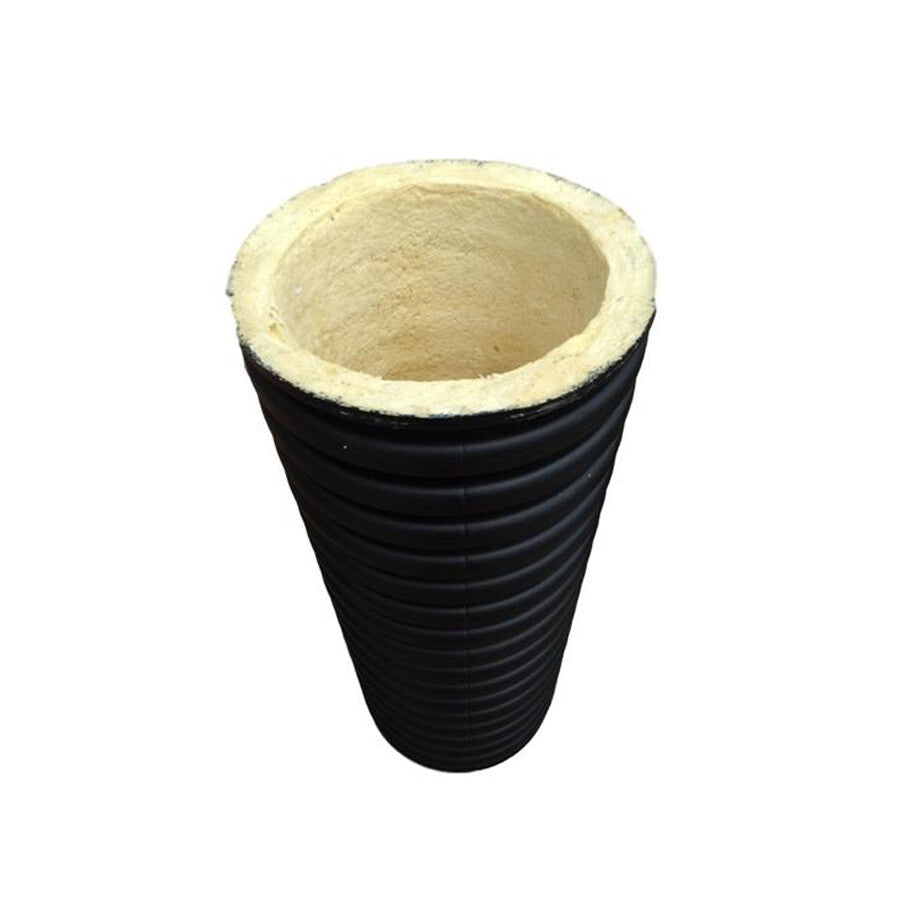

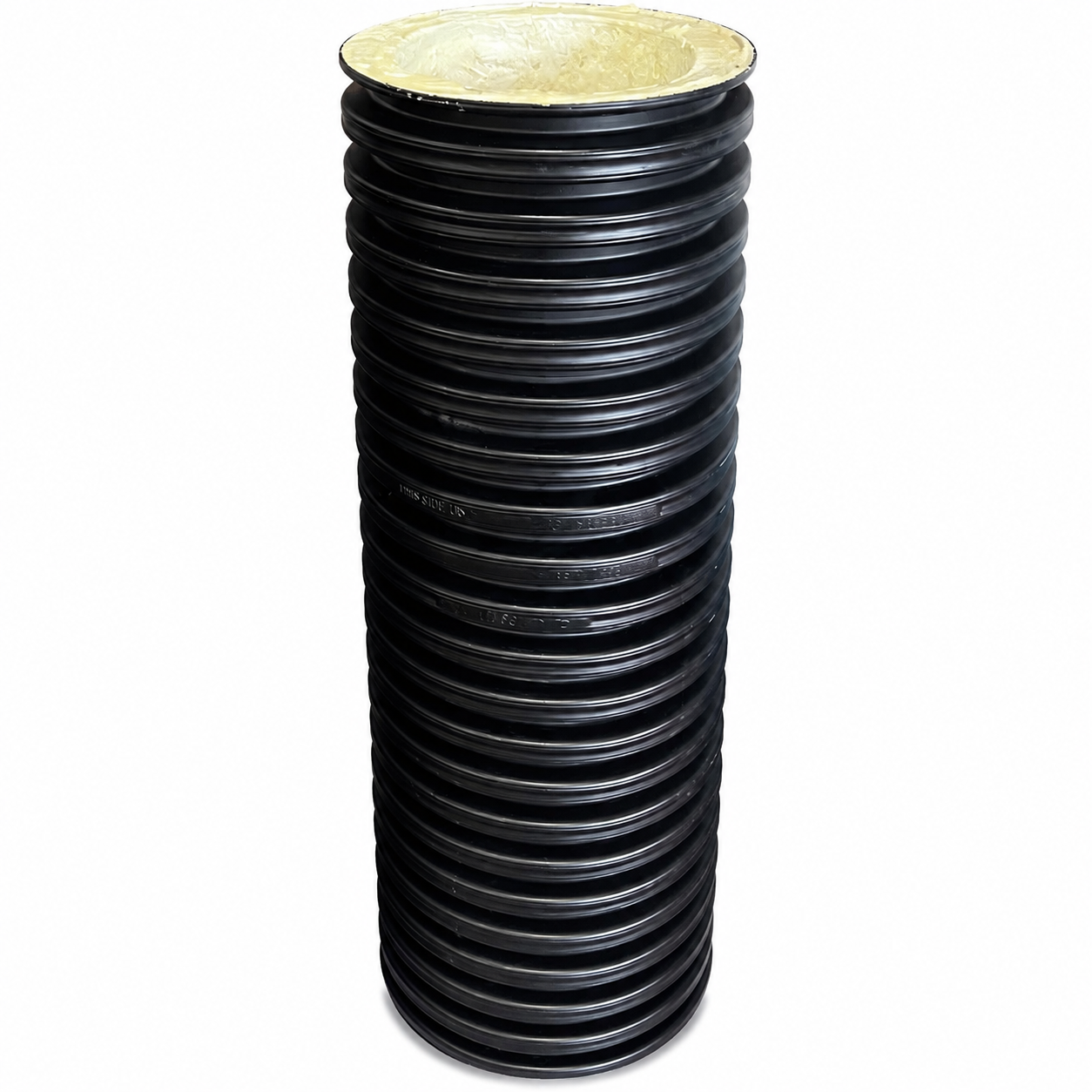

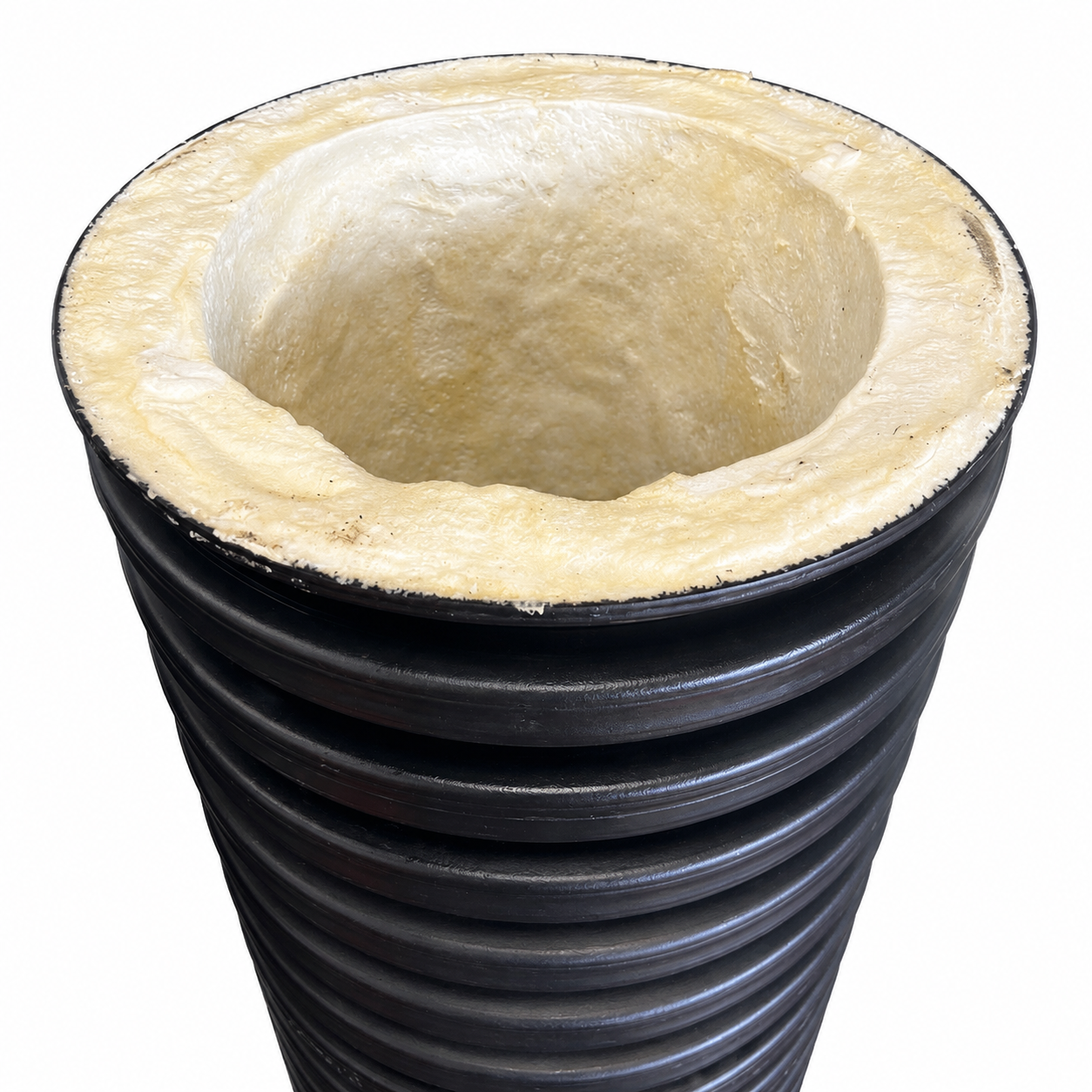

The JUG Insulated Earth Tubes provide superior protection for your waterline by insulating it below the frost line. With a 15-inch outer diameter and 10-inch inner diameter, these corrugated plastic tubes are lined with 5 inches of foam insulation, ensuring energy efficiency and minimizing heat loss into the frozen ground. The durable poly exterior resists rust, rot, and chemically active soil, while the corrugated design adds rigidity to withstand ground movement caused by freezing and thawing.
Available in 3', and 4' sections, these Earth Tubes are easy to install and can be extended using an Earth Tube Coupler (sold separately). Bury the waterline at least 1 foot below your frost line and ensure the tube's top is level with the concrete pad for optimal performance. The Earth Tube is designed to insulate waterlines below ground and does not feature a tapered design.
Frequently asked question
Can these be used as a culvert under a driveway, or for drainage?
We are asked this often, and the honest answer is that we are not able to advise on it. These earth tubes are made for use under automatic waterers, and that is the only use we have information for. We do not have specifications or testing for anything outside of that, so we cannot tell you how one would hold up under a driveway or whether it would work for drainage.
