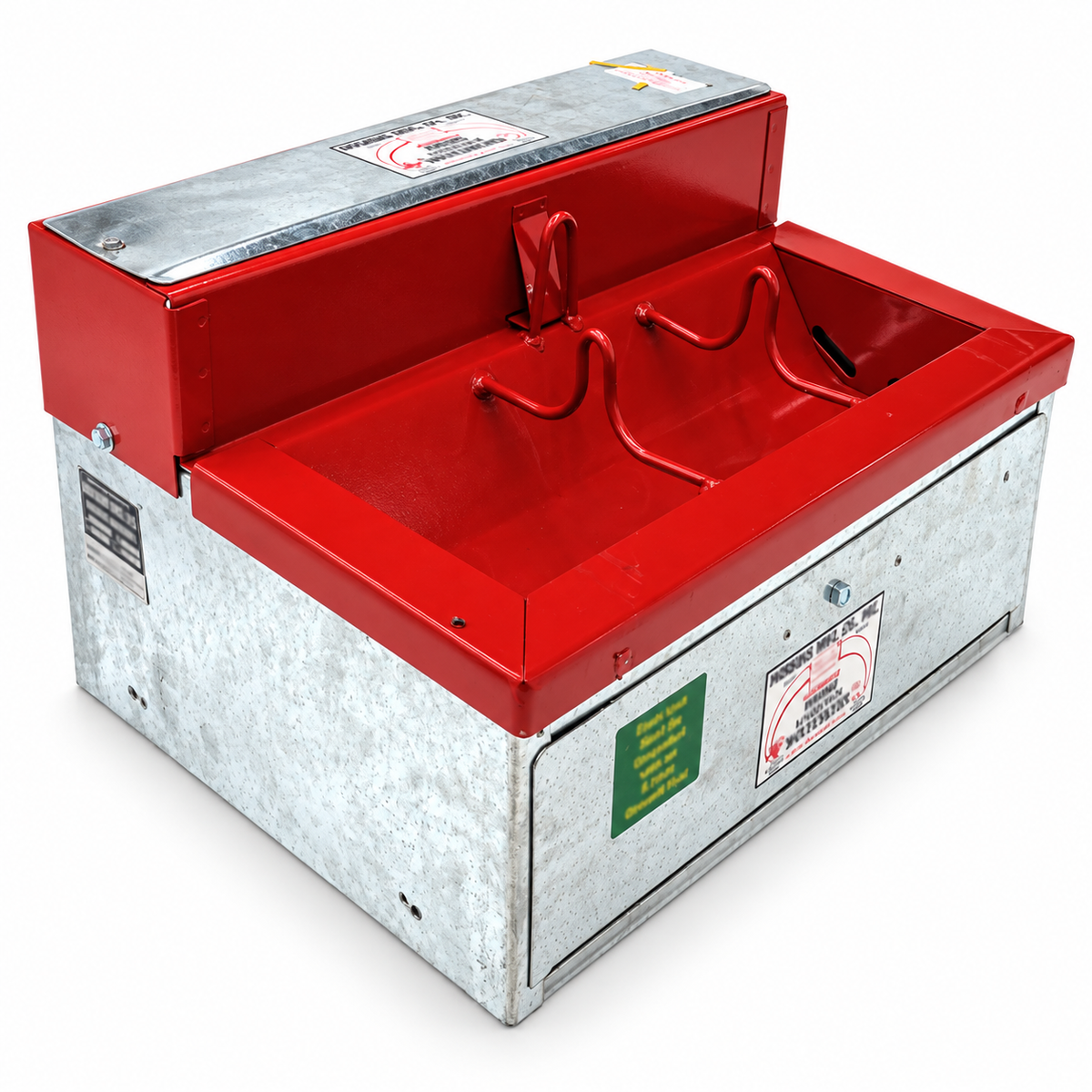

• Hoskins H9-22S heated pig waterer, 17 by 22 in. stainless tank in a galvanized frame
1 1

Hoskins H9-22S Heated Pig Waterer, 9 in. Frame – 5 Gallon

Hoskins H9-22S Heated Pig Waterer, 9 in. Frame – 5 Gallon

Part Number H922S

$684.00 USD
$684.00 USD
Sale Sold out
Shipping calculated at checkout.

Seventeen inches long and 22 in. wide, one compartment, 5 gallons. The short body suits a pen corner.

What you are getting

  1. Stainless steel tank, 5 gallons (19 litres)
  2. Overall 17 in. long by 22 in. wide by 9 in. tall
  3. Insulated galvanized steel frame, 60 lb. empty
  4. One Model A element, 250 watts total, held off the tank
  5. 3/8 in. RM 153
  6. 1 1/2 in. rubber stopper on the drain
  7. One drinking compartment
  8. Rated for up to 100 hogs

Same water, different shape

Both of these hold five gallons and both are rated to 100 head. What separates them is footprint: 17 by 22 in. here against 28 by 14 in. on the double. Choose on the opening you have.

How Hoskins builds them

Take the cover off a H9-22S and there is very little to it. 5 gallons of stainless, an insulated galvanized frame, and a Model A element riding in the frame with clearance all round.

The RM 153 float-and-valve assembly, 3/8 in., sits in an insulated compartment of their own behind a lift-off cover, so a repair in January does not mean emptying the tank. The drain stopper is 1 1/2 in..

This one measures 22 in. across the body and stands 9 in. deep, carrying one compartment. Galvanized frame, 60 lb. empty.

Putting one in

The water line and the power both come up inside the base of a H9-22S, so one trench carries both and the stub-ups have to land inside a 17 by 22 in. footprint. Set a reinforced pad roughly 25 by 30 in. and stand it a few inches above the ground around it, which keeps muck from packing against the frame.

Electrically the Model A element pulls 2.1 amps on 120 volts, so its own 15 amp circuit is enough. Ask whoever wires it to confirm the earth at the same visit. Stray voltage is the usual reason stock go off a waterer that is working perfectly well, and it is almost never the first thing anyone checks.

Read your water pressure at the unit rather than at the well, and read it more than once in a day. At 60 lb. empty two people can set this one, which is part of why it ships by UPS. Hoskins puts the rating at up to 100 hogs.

Browse the rest of the line under Hoskins pig waterers, or see Hoskins waterer parts.

View full details

More about the H9-22S

Parts the H9-22S takes

Valve: 3/8 in. RM 153 (no separate float rod on this model). Drain stopper: 1 1/2 in.. Heating element: Model A, 250 watts at 120 volts.

Every one of those is a stock item here. The full list for this model is in the collection further down the page.

Shipping and pick-up

At 60 lb. the H9-22S goes out by UPS ground, the same way a box of parts does, so there is no freight quote to wait on.

Pick-up at Hoskins, NE is available if you would sooner collect it.

Dimensions and weight

Overall 17 in. long by 22 in. wide by 9 in. tall. Tank capacity 5 gallons. Weight empty 60 lb.

Allow a pad a few inches wider than the frame on every side, standing above the surrounding ground so muck does not pack against it.

Keeping it running

Flush the tank weekly through the cold months and check that the 1 1/2 in. stopper is seating on clean rubber. The 3/8 in. RM 153 assembly is the one wearing part worth a spare.

If stock suddenly go off a waterer that is working, check the ground at the breaker box before anything else. Stray voltage puts animals off water and nothing looks wrong.

Need Parts for your Hoskins H9-22S?

The parts that fit a Hoskins H9-22S, gathered in one place so you are not reading a spec sheet in a cold valve compartment.

This model takes the 3/8 in. RM 153 valve and float assembly, which needs no separate rod, a 1 1/2 in. rubber stopper, and the A250 element. Valve, rod and stopper all sit behind the same service door, so if one is coming out it is worth checking the others while the cover is off.
