Pride of the Farm WPO12N Unheated
Pride of the Farm WPO12N Unheated
Part Number WPO12N
Allow up-to 2 weeks for shipping
Couldn't load pickup availability

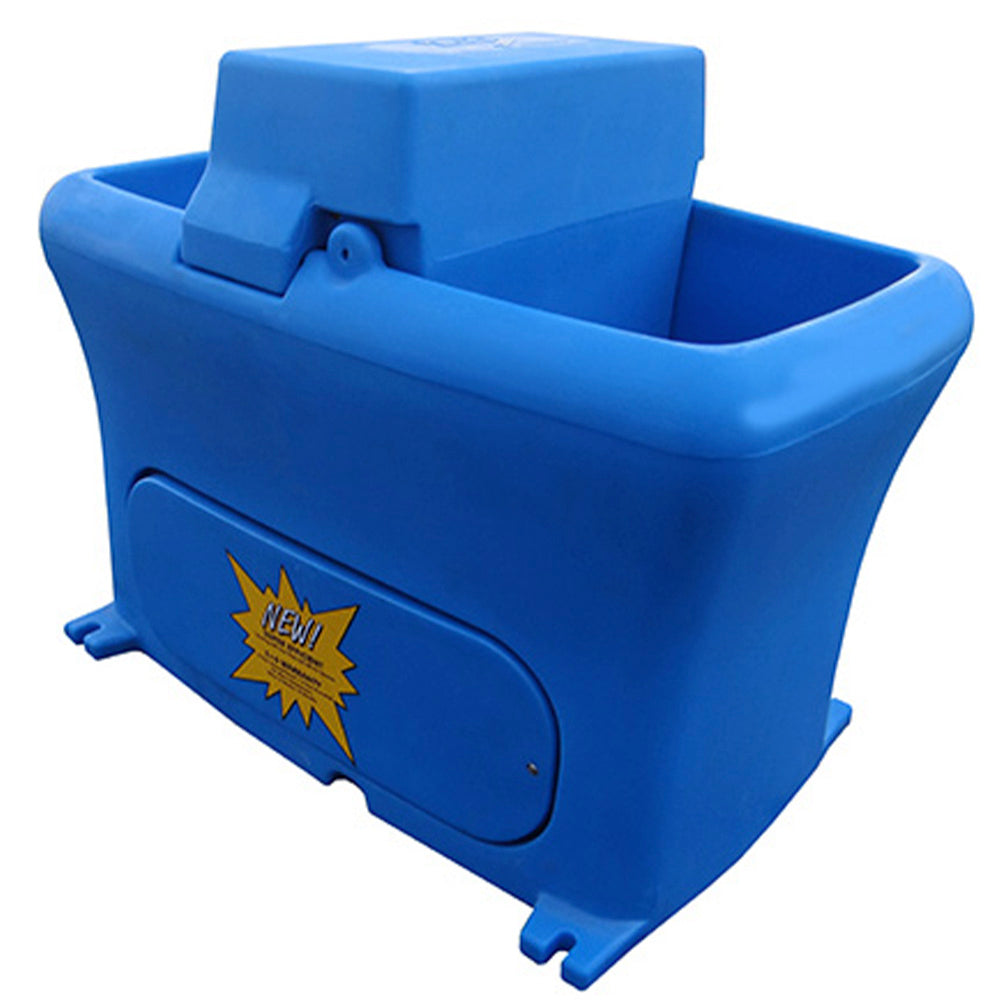

The WPO12N from Pride of the Farm is a rugged, unheated, two-sided waterer engineered to handle up to 150 head of most livestock species (except swine). Holding 12 gallons with a large 9″ × 15″ drink opening, and measuring 19″ wide × 31″ long × 25″ high, this unit fits stalls, corrals, paddocks and more. Built with foam-filled double-wall poly for exceptional thermal protection, the WPO12N also features smooth rounded corners to prevent animal injury, and a stainless steel access panel beneath the unit for fast maintenance and installation. Need heating? An optional 250-watt, 110-volt heater is available to convert the unit when weather demands.
-
Capacity: 12 gallons; approx. 150 head.
-
Drink opening: 9″ × 15″.
-
Dimensions: 19″ W × 31″ L × 25″ H.
-
Applications: Horses, calves, goats, sheep, wildlife — ideal for stalls, corrals, paddocks.
-
Features: Dual-sided design for shared access, fully insulated body, lower access panel for valve/ plumbing service, smooth rounded corners for safety.
-
Optional 250W / 110V heater kit compatible to upgrade for cold-weather use.
Whether you’re outfitting a new facility or replacing an older drinker, the WPO12N delivers high-capacity performance, low-maintenance design, and flexibility for multiple species.
- Supports multiple species without needing separate waterers.
- Cuts labor time with a large drinking surface and 12-gallon reservoir.
- Low-maintenance design with quick-access service panel.
- Energy-saving operation in its unheated configuration. Heat required for freezing climates.
- Reduces freeze-ups in mild-to-moderate winter climates thanks to insulated body.
- Safer for animals, especially in tight spaces where they may jostle.
- Flexible upgrade path—install unheated now, add heater later if needed. (Install electric to the unit at the time of installation for later use)
- Long service life due to rot-resistant poly and corrosion-proof hardware.
- 12-Gallon Capacity – Large, shared water source with adequate reserve for herd drinking patterns.
- Unheated Two-Sided Design – Ideal for up to 150 head depending on species and climate.
- Large 9" × 15" Drink Opening – Comfortable access for horses, calves, goats, sheep, and wildlife.
- Fully Foam-Filled Insulation, Double-Wall Poly Body – Excellent insulation for year-round temperature stability.
- Smooth, Rounded Corners – Reduces injury risk for livestock during feeding or crowding.
- Access Panel Below – Quick reach to valve and plumbing for installation or service.
- High-Quality Durapride Valve System – Provides dependable water flow and reduces overfilling.
- Optional 250-Watt / 110-Volt Heater – Easily upgrade to a heated unit for winter protection.
- Rugged Molded Poly Construction – UV-stable, impact-resistant, and built for long-term durability.
- Compact Footprint (19″ W × 31″ L × 25″ H) – Fits stalls, corrals, paddocks, pens, and small barns.
- Mount on a solid, level surface such as a concrete pad using a riser tile or insulated heat tube for waterline protection.
- Anchor to concrete pad to secure the unit in high-traffic areas or where larger livestock will use the waterer.
- Extend water supply line below frost depth, even in unheated models, to reduce freeze risk at the valve.
- Use flexible hose or insulated line to reduce vibration damage and limit heat loss through plumbing.
- Flush lines before connecting the Durapride valve to remove debris and prevent valve sticking.
- Check valve placement through the top cover to ensure proper alignment with the float.
- Test water level adjustments after installation to confirm proper shutoff and refill speed.
- Optional heater installation: if adding the 250W heater, connect only to a GFCI-protected 110V outlet installed under unit.
- Inspect seals and drain areas at the beginning and end of each season for debris buildup.
