Ritchie Omni 1 Complete Valve Chamber Kit
Ritchie Omni 1 Complete Valve Chamber Kit
Part Number 12575
40-60 PSI
Couldn't load pickup availability
Three parts, one order, and an Omni 1 that holds its level again. The valve and float wear on the same timeline, and the bracket is right there with them, so this kit does the chamber in one pass.

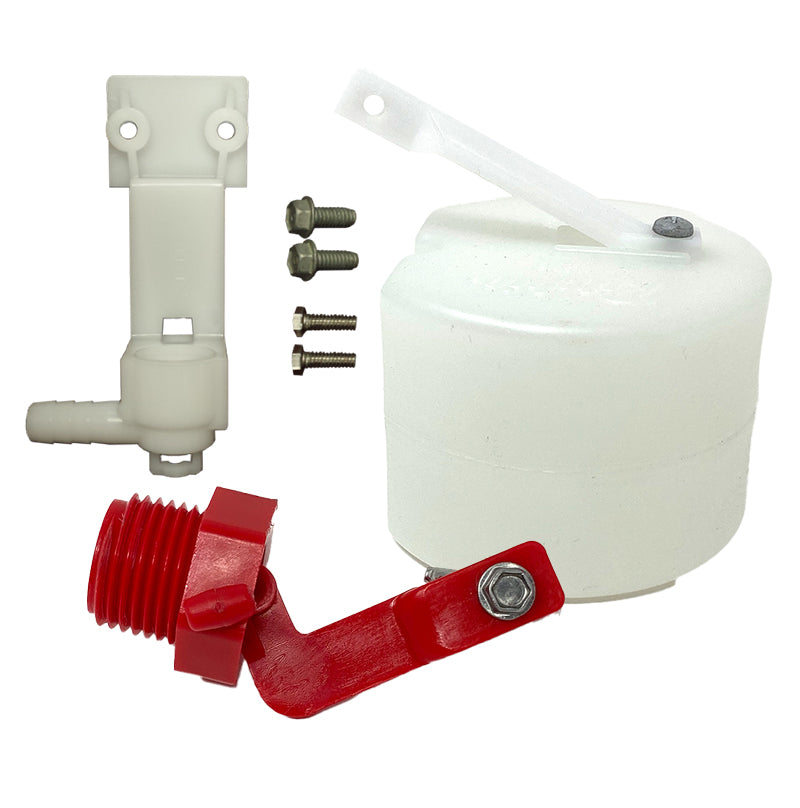

Three parts, one order
- Ritchie red 1/2" valve #12575 — rated 40 to 60 PSI.
- Ritchie float #13613 — the short arm float, which is the one a Omni 1 takes.
- Ritchie valve bracket #11515 — supplied with its screw package.
Because the three parts have to agree with each other. Buy them separately and you are checking a valve against a float against a bracket across three listings, and if one of them is on back order the other two sit in a box while the waterer keeps dripping. One line on the order, one box, one trip out to the unit.
Changing one part at a time rarely ends well
Water pressure, grit and hard water work on the valve seat and on the float at the same rate, because both sit in the same water for the same number of seasons. Swap one and the other is still the age it was. The reason this ships as a set is that the second call out, three weeks later, costs far more than the part would have.
Ritchie 1/2 inch valves by pressure
All three share the same body and thread. What changes is the orifice, so the color tells you the pressure band it is built for.
| Valve | Part | Pressure | Flow | Where it suits |
|---|---|---|---|---|
| White | 12574 | 5 to 40 PSI | 4.8 GPM | Gravity flow or a low pressure line |
| Red in this kit |
12575 | 40 to 60 PSI | 3.4 GPM | Most wells, the usual choice |
| Green | 13597 | 60 to 80 PSI | 1.45 GPM | City water or a high pressure line |
It is not meant to thread in until the threads disappear. Snug it by hand and leave it. A wrench, or an extra half turn of determination, is what splits a valve bracket, and a bracket split that way falls outside the warranty. Ritchie prints the same warning in red on the valve packaging.
Unsure which build you have, or which color valve your line calls for? Send your model and serial number through our contact form and we will match it for you.
- Complete Repair Solution: Includes the 11515 valve bracket, 12575 valve and 13613 float package, designed specifically for the Ritchie Omni 1 waterer.
- Optional Add-On: 15151 valve rubber replacement package for a complete repair kit and enhanced functionality.
- Precision Fit: Engineered to ensure seamless integration with your Omni 1 Special waterer for optimal performance.
- Durable Components: Constructed from high-quality materials to withstand the demands of daily livestock use.
- Easy Installation: Simplifies the repair process, reducing downtime and maintaining consistent water access for your animals.
