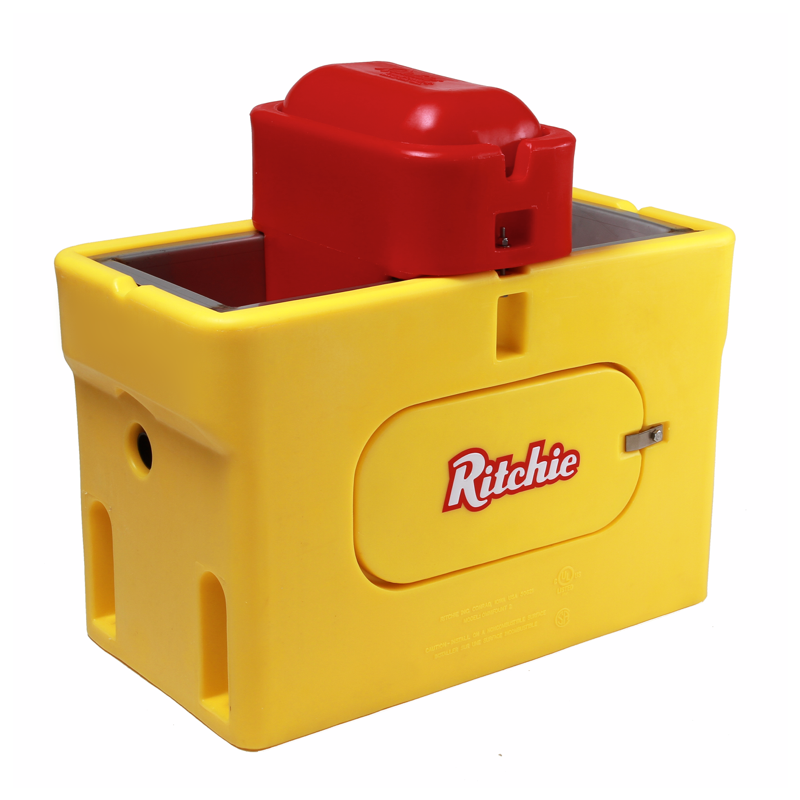

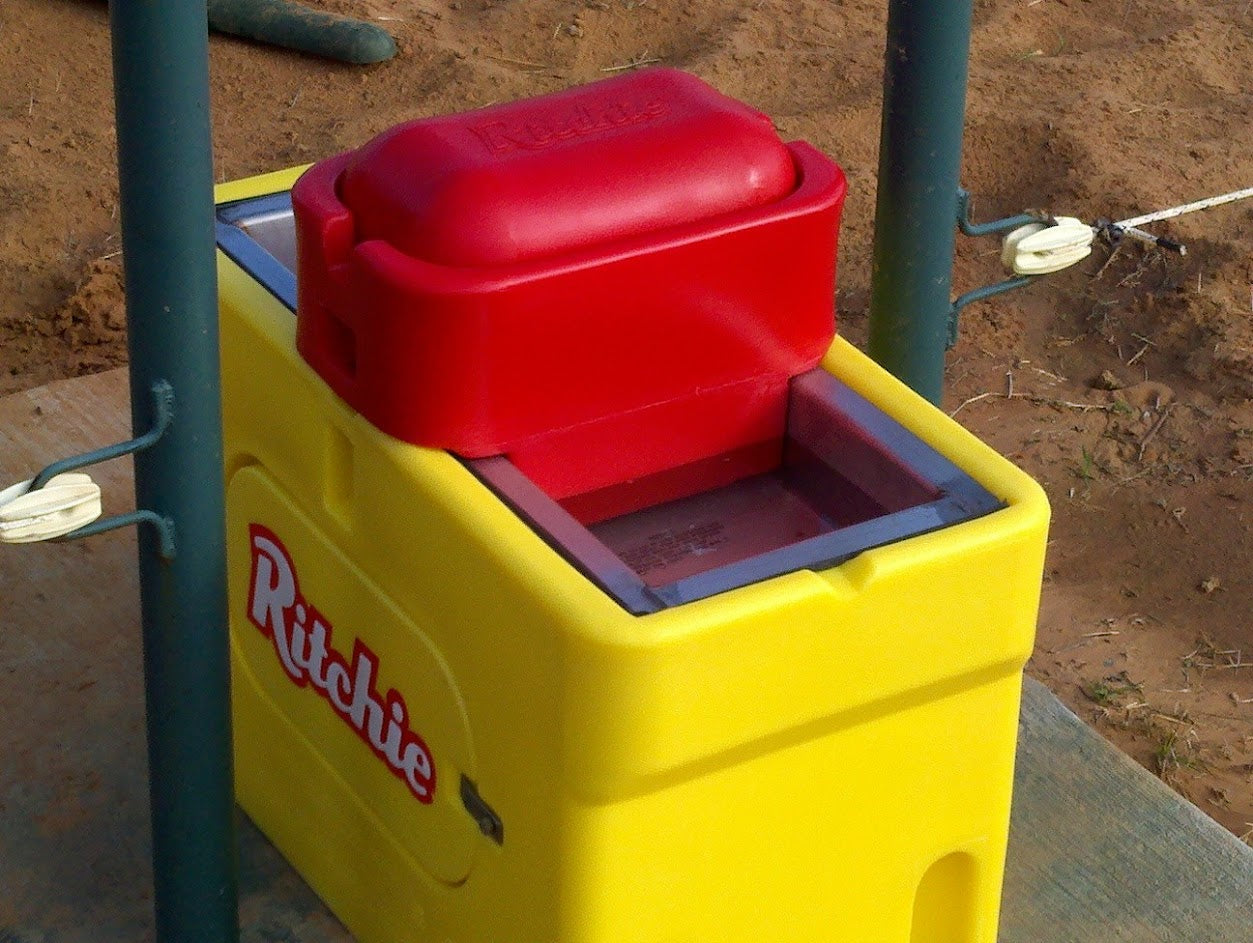

Ritchie Omni 2 #16619 Heated Automatic Waterer

• Simple maintenance and effortless cleaning for hassle-free operation.
• Large access panel ensures convenient access to heating components and waterlines.
• Heating elements positioned directly beneath the stainless steel trough deliver consistent heat coverage and dependable performance in extreme weather conditions.
• Built-in cable heater adds extra protection to the valve and supply line.
• Insulated with high-efficiency polyurethane foam for superior energy savings, boasting an impressive R-factor of 7 per inch.
• Designed to provide fresh water for 1-40 horses.
• The OmniFount unit arrives fully equipped and ready for connection to your electric and water lines.
• For secure installation, 4 stainless steel anchor bolts (5" x 3/8" part 16555) are recommended to anchor the unit to the concrete pad.
• Backed by a robust 10-year prorated warranty for peace of mind.

• Each unit will require 5" x 3/8" anchor bolts
• An all weather sealant around the base of the unit will prevent air gaps and cold from penetrating the underside of the unit.
• The Omni Series will need electric for the heat system yet will be energy efficient throughout the winter
• If you have high water pressure - water pressure that exceeded 60 PSI may cause the valve to leak. Install a pressure regulator on the line.
• Consider placing a stop and waste valve on the waterline to drain the line back to the original source. Automatic waterer installation are considered long-term and the stop and waste valve will be a nice, not often used, that will protect your line in the event it's not in use.
• Ensure the waterer is installed level.

Each Ritchie automatic waterer will require a buried waterline and a concrete pad.
