Ritchie Green Omni 1 #18516 - Heated Livestock Waterer
Ritchie Green Omni 1 #18516 - Heated Livestock Waterer
Part Number 18516
Water up to 40 head beef/horses
Couldn't load pickup availability

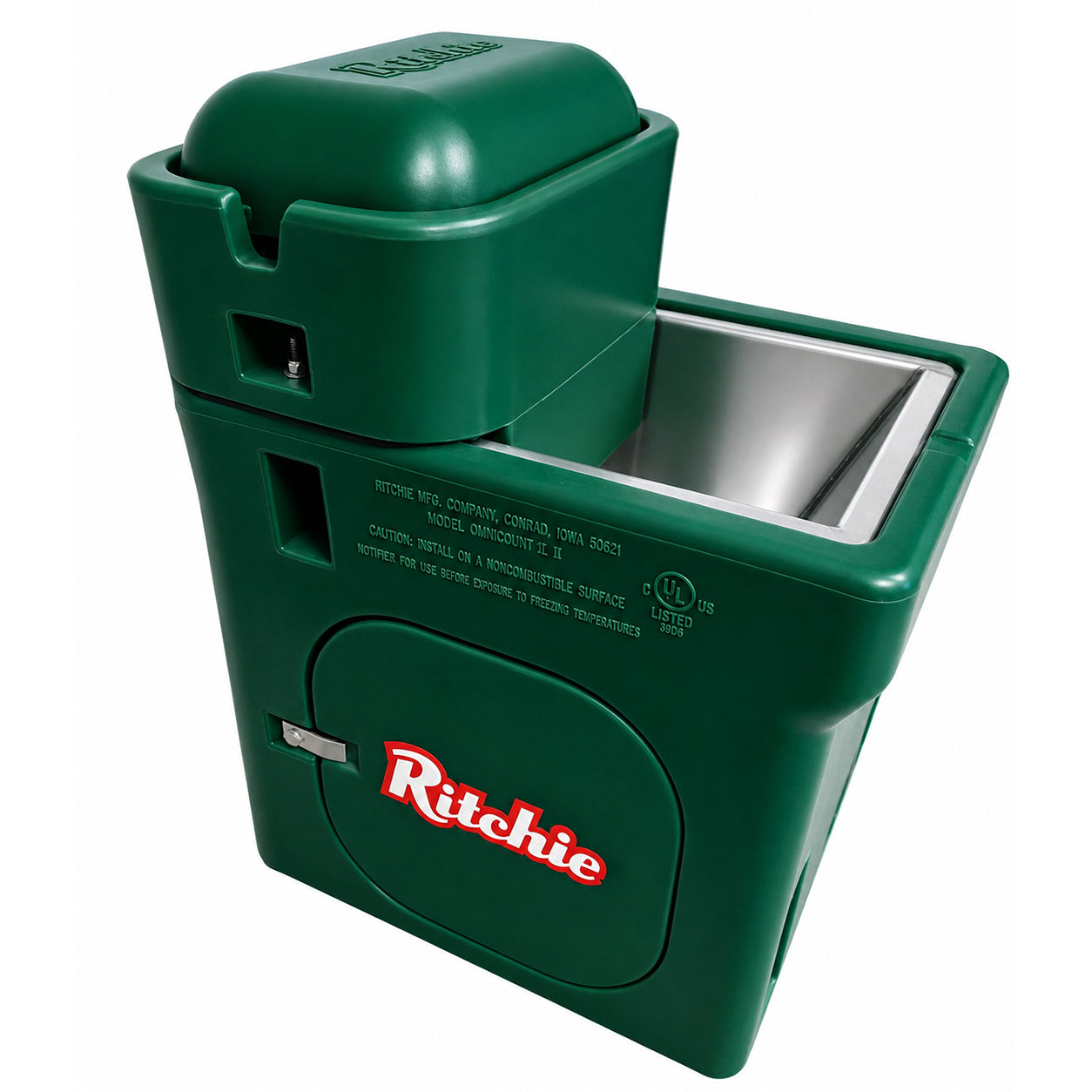

The Ritchie Omni 1 Green Automatic Waterer (Part #18516) delivers dependable, energy-efficient hydration for horses and cattle in a compact, insulated design. Finished in durable green, this model offers the same trusted performance and specifications as the yellow Omni 1 — the only difference between the two units is the exterior color.
Combining the durability of a stainless steel trough with the efficiency of a fully insulated poly housing, the Omni 1 is engineered for both performance and animal safety. Smooth, rounded edges help protect livestock while the insulated construction improves energy efficiency and helps maintain water temperature year-round.
Designed for cold climates and winter reliability, the Omni 1 features thermostatically controlled heating elements mounted beneath the stainless steel trough to help prevent freezing. A fast-refill valve ensures consistent water availability, making this heated automatic waterer ideal for stalls, smaller pens, or paddocks serving up to 20 head of cattle or horses.
Product Specifications
- Length: 20"
- Width: 14.5"
- Overall Height: 25"
- Drinking Height: 18"
- Capacity: 1.5 gallons
- Herd Capacity: Up to 20 beef or 20 horses
- Heat: 173W (1.4A @120V)
- Flow Rate: Standard 40–60 PSI
- Shipping Weight: 25 lbs
Built for durability, energy efficiency, and dependable winter performance, the Omni 1 provides a reliable automatic watering solution designed to keep livestock hydrated year-round.
- Green Ritchie Omni 1 automatic livestock waterer (Part #18516)
- Same design and specifications as yellow Omni 1 — color is the only difference
- Energy-efficient insulated automatic waterer for horses and cattle
- Fully insulated poly housing for improved frost protection
- Thermostatically controlled electric heating for freeze-resistant operation
- Durable 304 stainless steel trough for long service life
- Smooth, rounded design enhances livestock safety
- Fast refill valve maintains consistent water supply
Additional Accessories and Considerations:
- Anchor Bolts: Use 5" x 3/8" anchor bolts to secure the unit.
- Sealant: Apply an all-weather sealant around the base to prevent air gaps and cold from penetrating underneath.
- Electric Requirements: The Omni Series requires electricity for its heating system but remains energy efficient throughout winter.
- Water Pressure Regulation: High water pressure exceeding 60 PSI may cause valve leaks. Install a pressure regulator to maintain optimal performance.
- Stop and Waste Valve: Consider adding one to drain the line back to the source when not in use. This is a long-term solution to protect your waterline.
- Level Installation: Ensure the waterer is installed on a level surface for proper operation.
To install a Ritchie automatic waterer, you’ll need a buried waterline and a concrete pad.
